GORE® HDMI Cables for Civil Aircraft

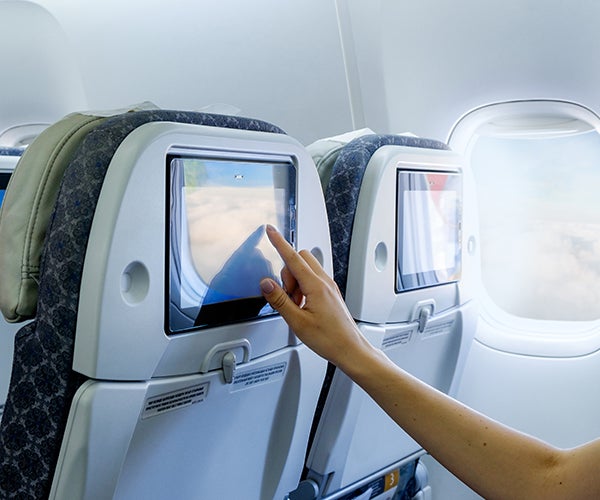

Our cable bundles support 4K resolution when pilots view flight data on cockpit displays and passengers watch IFE on cabin seat monitors. Small and low weight, they continuously transfer data and video instantly for 1.4 Cat2 and 2.0 protocols on airborne digital networks and system displays.
Contact Us
+1 800 626 7708
Germany
+49 9144 6010
+49 9144 6816 (fax)
UK
+44 1382 56 1511
+44 1382 56 1007 (fax)
Italy
+39 045 6209 209
+39 045 6209 165 (fax)
France
+33 1 5695 6565
+33 1 5695 6401 (fax)
Spain
+34 93 480 6900
+34 93 373 7850 (fax)
Sweden
+46 31 7067800
+46 31 864226 (fax)
China (Beijing)
+86 10 5707 4999
+86 10 5707 4900 (fax)
China (Shanghai)
+86 21 5172 8299
+86 21 6247 9199 (fax)
China (Shenzhen)
+86 755 8359 8262
+86 755 8359 1654 (fax)
South Korea
+82 2 393 3411
+82 2 393 1285 (fax)
Japan
+81 3 6746 2582
+81 3 6746 2571 (fax)
Overview
Higher Resolution Displays
With the demand for faster access to flight data and in-flight entertainment (IFE) on avionics digital networks and displays, cables must deliver the highest data rates and video resolution without failing. At the same time, cables need to be smaller and lighter to fit in tiny spaces of cockpits and cabins.
Meeting 1.4 Cat2 and 2.0 protocols, GORE HDMI Cables are known to transmit outstanding signals for high-speed data and video transmission up to 18 Gb/s without interruption. They also support 4K (2160p) video resolution so pilots can view critical flight information and passengers can watch IFE on crystal-clear aircraft displays.
LOW WEIGHT WITH MORE DURABILITY
Size and flexibility matter when it comes to installing cables in airframes to avoid frequent failures, reduce replacement costs and keep aircraft weight down. Built with low-weight, flexible materials, our cable bundles offer smaller diameters with a tighter bend radius for less complicated routing in tight spaces that will please maintainers.
Though low in weight, they don’t compromise on durability and can easily sustain the demands of their surroundings where other cables have failed. All of these features translate to lifetime performance for operators and cost savings for original equipment manufacturers (OEMs).

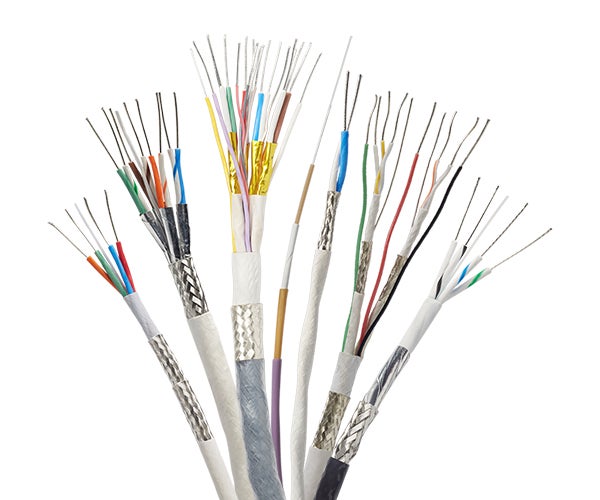

Low-weight materials of GORE HDMI Cables.
Applications
For 1.4 Cat2 and 2.0 protocols, GORE HDMI Cables promise reliable high-speed data and video transmission with an optimal viewing experience in a variety of applications, like:
- consoles
- electronic flight bag (EFB)
- flight management systems
- glass displays
- HD streaming video systems
- IFE systems
- portable electronic devices
- sensor/processor connectivity
- weather mapping
Our cable bundles can also be terminated with a variety of leading high-speed aerospace connector systems and backshells, like ARINC and MIL-STD-38999 with size 8 contacts.
Features & Benefits
Ideal for high-resolution displays, GORE HDMI Cables are built with distinct features that make them more durable against demanding environmental factors and interior aircraft conditions:
- abrasion- and temperature-resistant materials
- chemically inert materials
- small, low-weight cable diameters
Our aviation cable bundles offer system architects and engineers a number of benefits that ensure lifetime mechanical and electrical performance, like:
- meet 1.4 Cat2 and 2.0 protocol requirements
- support 4K video resolution for a rich, clear viewing experience
- outstanding signals for high-speed data and video transmission up to 18 Gb/s
- robust construction provides uncompromising durability in difficult conditions
- valued weight savings in commercial aircraft
- compatible with a variety of high-speed connector systems and backshells
Technical Specs & Drawing
These values demonstrate the electrical, mechanical and environmental performance of GORE HDMI Cables for civil aircraft. Download our data sheet for more cable characteristics, qualifications and part number. Also, fill out a short form for instant access to the drawing.
Elec./Mech./Environ. Property | Value |
---|---|
Signal Transmission Speed Gb/s | Up to 18 |
Standard Impedance Ohms | 100 ± 10 |
Typical Operating Voltage V | < 15 |
Nominal Velocity of Propagation % | 80 |
Nominal Time Delay ns/m (ns/ft.) | 4.10 (1.25) |
Capacitance pF/m (pF/ft.) | 230.0 (70.0) |
Maximum Skew Within Pair ps/m (ps/ft.) | 15.0 (4.6) |
Dielectric Withstanding Voltage Vrms Conductor-to-Conductor Conductor-to-Shield | 1500 1000 |
Jacket Material | Engineered Fluoropolymer |
Jacket Color | Gray |
Conductor | Silver-Plated Copper or SPC alloy |
Conductor Color-Coding | High-Speed Pairs: Blue/White, Brown/White, Green/White, Red/White SIngles: Orange, Violet, White, Yellow Triad: Gray, Pink, Tan |
Dielectric Material | Expanded PTFE/PTFE |
Temperature Range °C | -65 to +200 |
Get Samples or Buy
For faster routing, weight savings, and unfailing high-speed data and video transfer with optimal viewing, connect GORE HDMI Cables to your HD displays. If you’re ready to make a purchase now, get in touch with one of our trusted distributors for in-stock availability.
You can also confirm the quality and compatibility of our cable for 1.4 Cat2 and 2.0 protocols in your application by ordering a complimentary pre-qualified sample. If you want to learn more and discuss your specific characteristic limits and application needs, contact us today.
